HK-004
Details
Flat, wire rod, activities, a fixed wheel
2".2^½". 3"Acllvltles can be equipped with side brake
3",1", 5"ActIvIties can be equipped with double brake
Fi nishing:Availabe in all sizes, enter Z for Zinc.
Customlzation:color of Rig and Wheel may be customizes

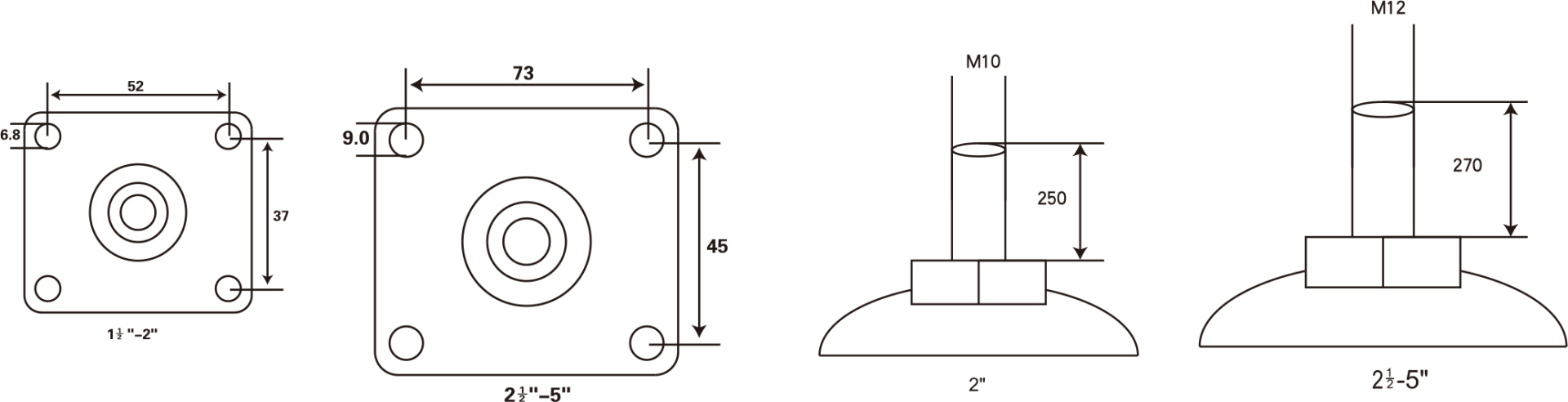

PLATE DIAGRAMS
Parameters
| wheel dia(mm) | tread width(mm) | capacity per caster | wheel material | bearing | approx weight per caster(kg) | loading height(mm) |
| 50(2") Side brake |
25 | 60 | Nylon | Double Ball Bearing | 0.44 | 76 |
| 55 | High-strength artificial rubber | |||||
| 60 | Super polyurethane | |||||
| 60 | High-strength artificial rubber | |||||
| 63(2^½") Side brake |
30 | 80 | Nylon | 0.75 | 93 | |
| 75 | High-strength artificial rubber | |||||
| 80 | Super polyurethane | |||||
| 85 | High-strength artificial rubber | |||||
| 75(3") Side brake |
32 | 85 | Nylon | 0.86 | 108 | |
| 80 | High-strength artificial rubber | |||||
| 85 | Super polyurethane | |||||
| 85 | High-strength artificial rubber | |||||
| 100(4") Side brake |
32 | 110 | Nylon | 1.0 | 134 | |
| 100 | High-strength artificial rubber | |||||
| 110 | Super polyurethane | |||||
| 110 | High-strength artificial rubber | |||||
| 125(5") Side brake |
32 | 120 | Nylon | 1.8 | 157 | |
| 110 | High-strength artificial rubber | |||||
| 120 | Super polyurethane | |||||
| 120 | High-strength artificial rubber |
